Short Circuit Current Calculator. Can be found on the. Fault is created at bus 2, the calculations for symmetrical rms current is made below.
Guide to 'ShortCircuit Current Calculations' Bussman by Eaton Factomart from www.factomart.com.sg

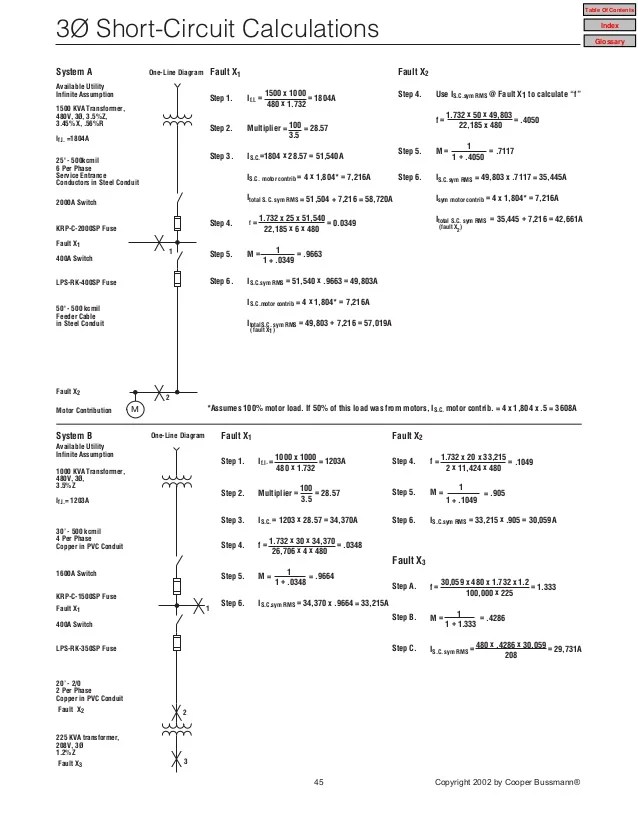

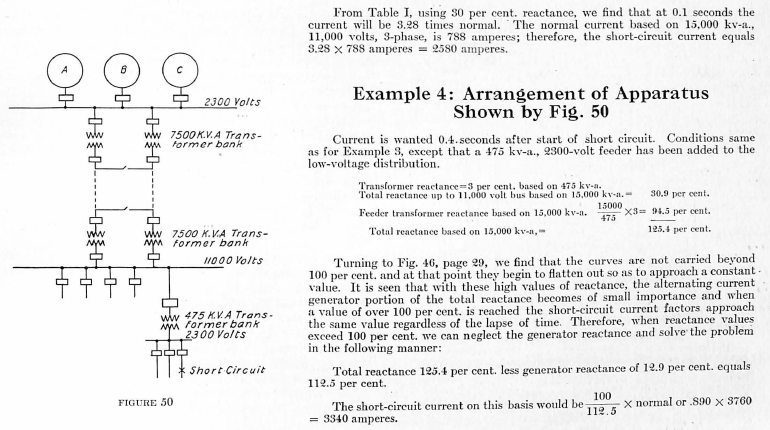

Circuit currents to a specific moment in time from the onset of the short circuit. Motor short circuit contribution, if significant, may be added at all fault locations throughout the system. Fault is created at bus 2, the calculations for symmetrical rms current is made below.
Therefore, The Ocpd Must Be Capable Of Safely Interrupting This Amount Of Current, Along With The Asymmetrical Current Value (Usually A Multiplier Times The Symmetrical.

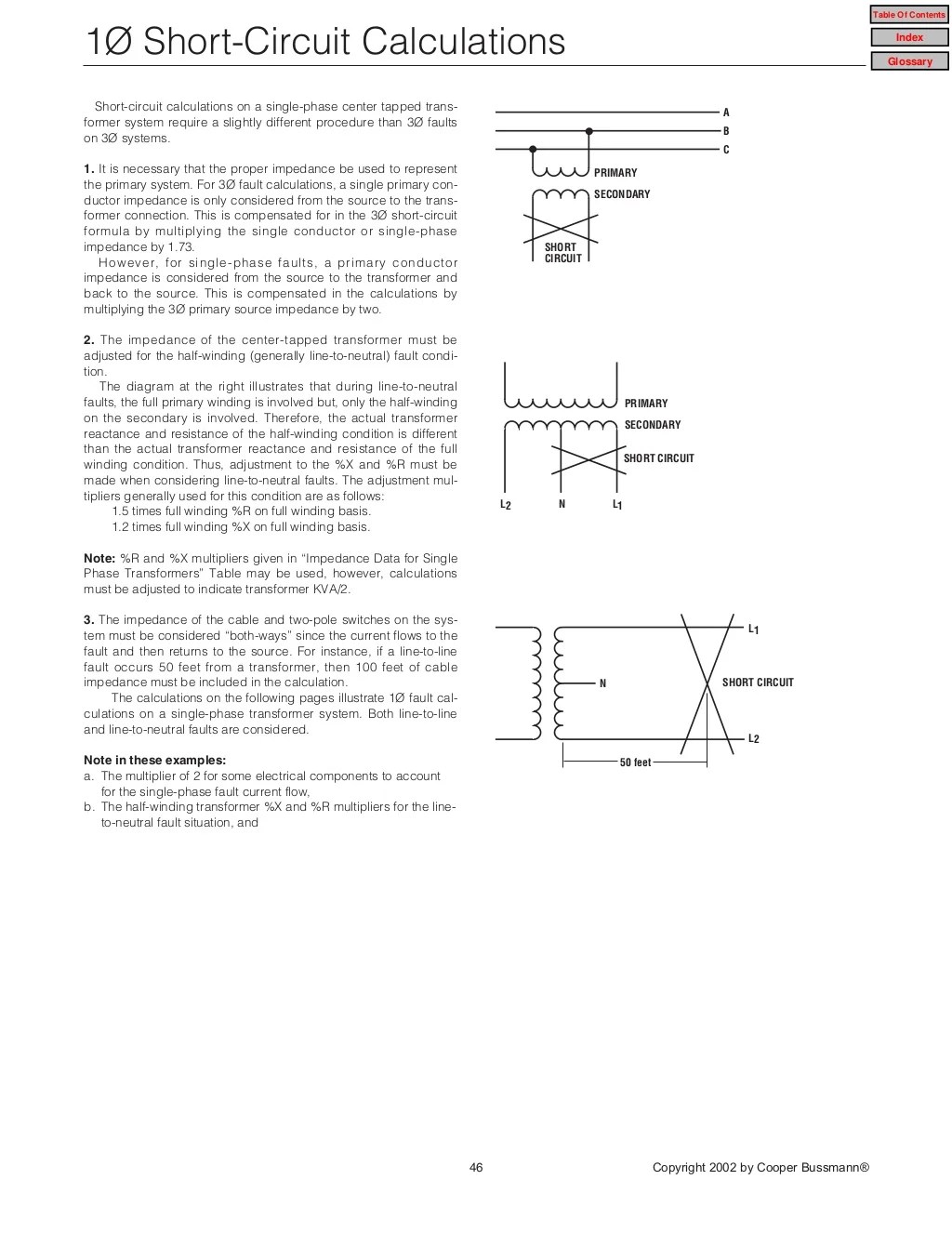

Single phase with cable run. The prospective short circuit current at the equipment can be found by: This will help you to decide the rating of circuit breaker.
Can Be Found On The.

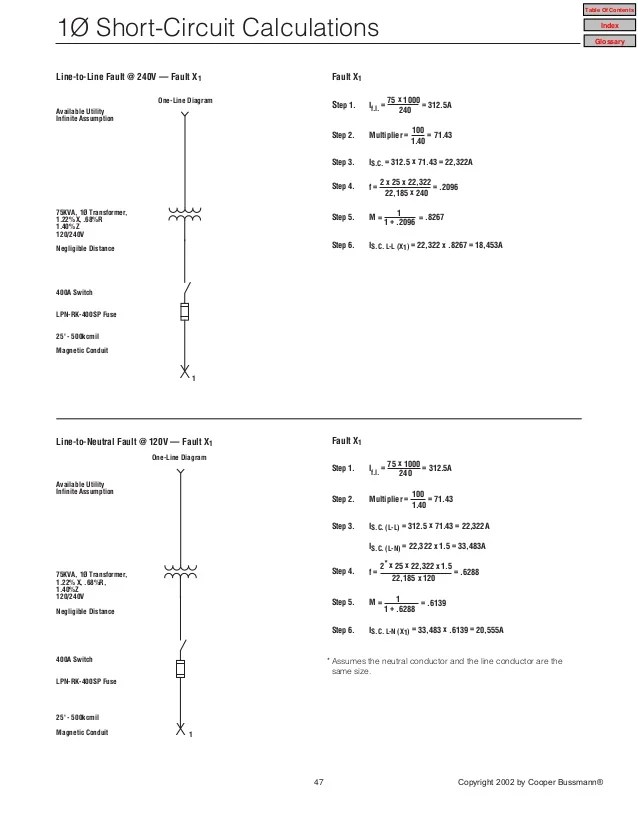

I_sc = ( (100%) / ( (impedance of transformer. Isubsc * (100% / %zsubt) x isubs = (100/2.5) * 417 = 16,680a. Infinite bus method gives the worst possible current in the event of a short circuit, therefore a relay or protection system configured using infinite bus method current will trip the circuit in minimum time.
Fault Is Created At Bus 2, The Calculations For Symmetrical Rms Current Is Made Below.
1 phase ac or 3 phase ac. Ac current decrement assessment is used to properly determine the symmetrical rms values of the short circuit dccurrents, while decrement calculations provide the necessary dc current component of the fault current, hence affording a correct approximation of the. The electromagnetic force developed between two parallel electric current carrying conductors, is given by the formula, where, l is the length of the both conductors in inch.
Please Let Me Know If You Have Any Questions.
Welcome to schneider electric's fault current calculator. Where the system peak fault current and the cable diameter are known, the formula featured in the below article, excerpted from the international standard iec 61914, can be used to calculate the forces between two conductors in the event of a 3 phase fault in order to specify the correct type of cable cleats. However, for a smaller value of fault.
Determine The System Voltage, Source Prospective Short Circuit Current And The X/R Ratio And Enter The Data Into The Calculator.
Values of 4 to 6 are commonly accepted. In this case you need a breaker who’s fault current breaking capacity is more than 2624.1a or 2.6ka. This article talks about the calculations of short circuit current for various faults (three phase fault, single line to ground fault, line to line fault and double line to ground fault) for the given network.
