Beam Deflection Calculation Example. However, the tables below cover most of the common cases. For this reason, the analysis of stresses and deflections in a beam is an important and useful topic.
Structures Sizing a beam using deflection and stress from www.chegg.com
The simply supported beam is one of the most simple structures. The moment of inertia is 50 kg m2. Solid rectangular beams hollow rectangular beams solid round beams round tube beams.
Stresses & Deflections In Beams.
M is the bending moment applied on the beam. How far down will the left end of the beam bend? Let’s start the steel beam design calculation.
Under This Steel Beam Design Calculation, The Following Checks Are Done.
You can find comprehensive tables in references such as gere, lindeburg, and shigley. Work out the properties in one material (i.e. Calculate deflection for solid rectangular beams.
(Ī£v = 0) And Moment Equation (Ī£mx = 0) For The Reaction Calculation.

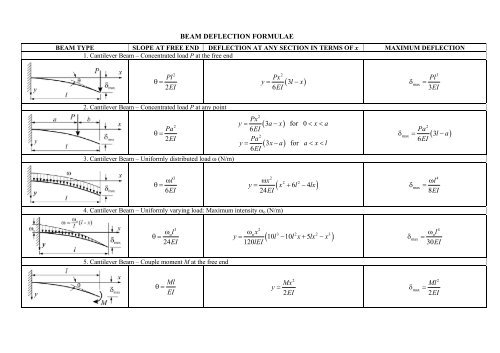

The tables below give equations for the deflection, slope, shear, and moment along straight beams for different end conditions and loadings. A pinned support and a roller support. However, the tables below cover most of the common cases.
Structural Beam Deflection, Stress Formula And Calculator:
M i = Ļ y = e r. It cover the all the design aspects. This deflection is calculated as:
The Figure Below Shows The Fbd For A Simply Supported Beam With Point Load On It.
Applied bending stress can be simplified to Ļ = m/z. Many structures can be approximated as a straight beam or as a collection of straight beams. This is a method for the calculation of deflections of beam structures that rely on the shape of bending moment diagram.
